Light Steel Keel, Ceiling T

Basic Info.

Trademark	Quality Carbon Structural Steel and Alloy Structural Steel, gyptop
Forming	Hot-Rolled Steel
Connection Form	Bolt Connection
Member	Steel Beam
Type of Steel For Building Structure	High-Strength Steel
Carbon Structural Steel	Q235
Residential Wall Structure	Wall Stud
Application	Steel Workshop, Steel Structure Platform, Steel Fabricated House, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
Transport Package	Carton
Specification	60300.5
Origin	Shnadong, China
HS Code	73089000
Production Capacity	1000000m2

Product Description

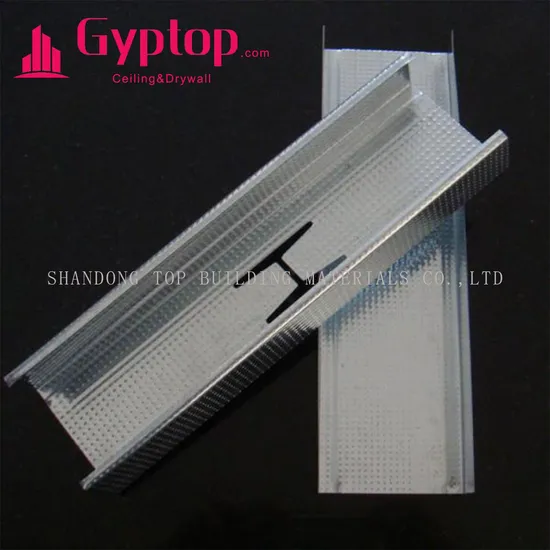

Light Steel Keel, Ceiling T-Grid System, Ceiling Frame, Flat, Groove, Various

Product introduction:Shandong Top Building Ceiling System metal profile is a kind of high-quality product manufactured by using continuous hot-dip galvanized low-carbon steel strip, advanced technology and rolling and cold bending process.
Gyptop Ceiling System metal profile is a kind of high-quality product manufactured by using continuous hot-dip galvanized low-carbon steel strip, advanced technology and rolling and cold bending process. The unique ceiling system, with less components, simple construction and fast installation, is a new type ceiling system compared with Chinese ceiling systems that are characterized by too many components and complicated installation.

Light Steel Keel, Ceiling T-Grid System, Ceiling Frame, Flat, Groove, Various

Applicable scope:
- Applies to C-form I and C-form IIceiling system.
- Possible to select plasterboards of different performances according to different requirements. Fix plasterboards on ceiling profiles with self-tapping screws to meet different performance demands.
- It can be used with universal bracket and applicable to wall lining system.
Features:
- made of corrosion resistant high-quality continuous hot-dip galvanized steel strip, the double-sided galvanization grammage exceed100g/m2
- 60mmwide web design makes it easier to fasten screw.
- Rib reinforcement design for flanges increases the rigidity of frame and reduces deformation.
- Produced by advanced technology in imported continuous production line ensuring high dimensional accuracy
- Geometrical size designed according to Chinese architectural characteristics and standards.
- C-form I and C-form IIceiling system can be selected according to different requirements for ceiling area and depth.
- Simple processing of frame can form ceiling designs with different effects, such as stepped ceiling, lighting box, etc.

Product specification:
Specification	Length (mm)	Weight (kg/m)	Package (piece/bundle)
DC60270.6	3000/4000	0.601	180
DU28270.5	3000/4000	0.285	180
* profile length can be produced according to customer requirements, but not exceeding 6m
