Galvanized Suspended Expose Ceiling Grid False Ceiling
Overview Detailed Photos Product Description Installation Instructions 1. Determine the requirement ceiling level, mark
Description
- Overview
- Detailed Photos
- Product Description
- Installation Instructions
- Certifications
- Packaging & Shipping
Basic Info.
| Model NO. | 32*24 38*24 26*24, 38*24 32*24 26*24 22*22 24*24 |
| Specification | 32*24 38*24 26*24, 38*24 32*24 26*24 22*22 24*24, 32*24 38*24 26*24, 38*24 32*24 26*24 22*22 24*24 |
| Shape | T-type |
| Usage | Terminal Building, Station, Playground, Hotel, Factory, Market, Office Building, Home |
| Function | Jar-Proof |
| Material | Steel |
| Thickness | 0.2-0.35mm |
| Raw Material | Galvanized Steel +Prepainted Steel |
| Color | White/Colourful |
| Type | Flat/Groove |
| Normal Size | 32h/38h |
| Transport Package | Packing with Carton |
| Trademark | Customization |
| Origin | China |
| HS Code | 7308900000 |
| Production Capacity | 60000m2/Day |
Product Description
Detailed Photos
Product Description
| Normal Plane T-Grid / T-Bar System (NPT system ) | ||
| Main Tee Size: (Height×width×Length) 38×24×3600/3660/3750mm 32×24×3600/3660/3750mm Thickness:0.26mm,0.30mm, 0.35mm,0.40mm | Cross Tee size: (Height×width×Length) 26×24×1200/1220/1250mm 26×24×600/610/625mm Thickness:0.26mm,0.3mm | Wall Angle Size: (Height×width×Length) 24×24×3000mm 20×20×3000mm Thickness:0.3mm,0.4mm |
| Narrow(Slim) Plane T-Grid / T-Bar System (SPT system ) | ||
| Main Tee Size: (Height×width×Length) 38×15×3600/3660/3750mm 32×14.5×3600/3660/3750mm Thickness:0.26mm,0.30mm ,0.35mm,0.40mm | Cross Tee size: (Height×width×Length) 32×14.5×1200/1220/1250mm 32×14.5×600/610/625mm Thickness:0.26mm,0.3mm | Wall Angle Size: (Height×width×Length) 24×15×3000mm 20×15×3000mm Thickness:0.3mm,0.4mm |
| Narrow (Slim) Groove T-Grid / T-Bar System ( SGBT system ) | ||
| Main Tee Size: (Height×width×Length) 32×14.5×3600/3660/3750mm Thickness:0.26mm,0.3mm, | Cross Tee Size: (Height×width×Length) 32×14.5×1200/1220/1250mm 32×14.5×600/610/625mm Thickness:0.26mm,0.3mm | Wall Angle Size: (Height×width×Length) 20×14×3000mm 20×14.5×3000mm 24×24×3000mm Thickness:0.3mm,0.4mm |
| Normal (Wide) Groove T-Grid / T-Bar System (NGB/ T system ) | ||
| Main Tee Size: (Height×width×Length) 30×24×3600/3660/3750mm Thickness:0.26mm,0.3mm, | Cross Tee Size: (Height×width×Length) 30×24×1200/1220/1250mm 30×24×600/610/625mm Thickness:0.26mm,0.3mm | Wall Angle Size: (Height×width×Length) 20×14×3000mm 20×14.5×3000mm 24×24×3000mm Thickness:0.3mm,0.4mm |
| Exposed Groove T-Grid / T-Bar System: (EGB/W T system) | ||
| Main Tee Size: (Height×width×Length) 42×15×3600/3660/3750mm 38×15×3600/3660/3750mm 32×15×3600/3660/3750mm Thickness:0.3mm,0.4mm, | Cross Tee Size: (Height×width×Length) 42×15×1200/1220/1250mm 42×15×600/610/625mm 38×15×1200/1220/1250mm 38×15×600/610/625mm 32×15×1200/1220/1250mm 32×15×600/610/625mm Thickness:0.3mm,0.4mm | Wall Angle Size: (Height×width×Length) 20×16×3000mm 20×16×3600mm Thickness:0.3mm,0.4mm |
| Plane T-Grid / T-Bar with Alloy-End (ANPT system ) | ||
| Main Tee Size: (Height×width×Length) 38×24×3600/3660/3750mm 32×24×3600/3660/3750mm Thickness:0.26mm,0.30mm,0.35mm,0.40mm | Cross Tee size: (Height×width×Length) 26×24×1200/1220/1250mm 26×24×600/610/625mm Thickness:0.26mm,0.3mm | Wall Angle Size: (Height×width×Length) 24×24×3000mm 20×20×3000mm Thickness:0.3mm,0.4mm |
| Alloy-end T-Grid / T-Bar System | ||
| Main Tee Size: (Height×width×Length) 38×24×3600/3660/3750mm 32×24×3600/3660/3750mm Thickness:0.26mm,0.30mm,0.35mm,0.40mm | Cross Tee Size: (Height×width×Length) 26×24×1200/1220/1250mm 26×24×600/610/625mm Thickness:0.26mm,0.3mm | Wall Angle Size: (Height×width×Length) 24×24×3000mm 20×20×3000mm Thickness:0.3mm,0.4mm |
Installation Instructions
1. Determine the requirement ceiling level, mark the position and fix wall angle on the wall
2. Hang main tee with T-bar suspension hook
3. Insert cross tee to the main tee
4. Cross tee adjacent to wall angle light fittings
5. Adjust the levels and alignments throughout the entire grid system accurately
6. Install PVC gypsum ceiling tile or other materials ceiling panel
Certifications

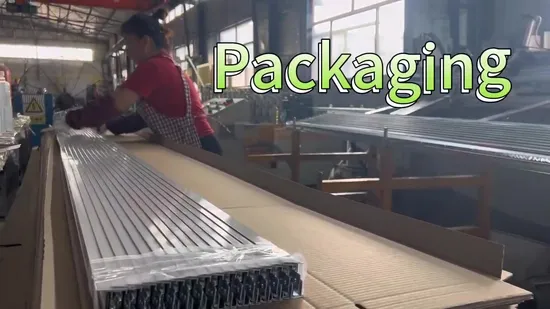

Packaging & Shipping
